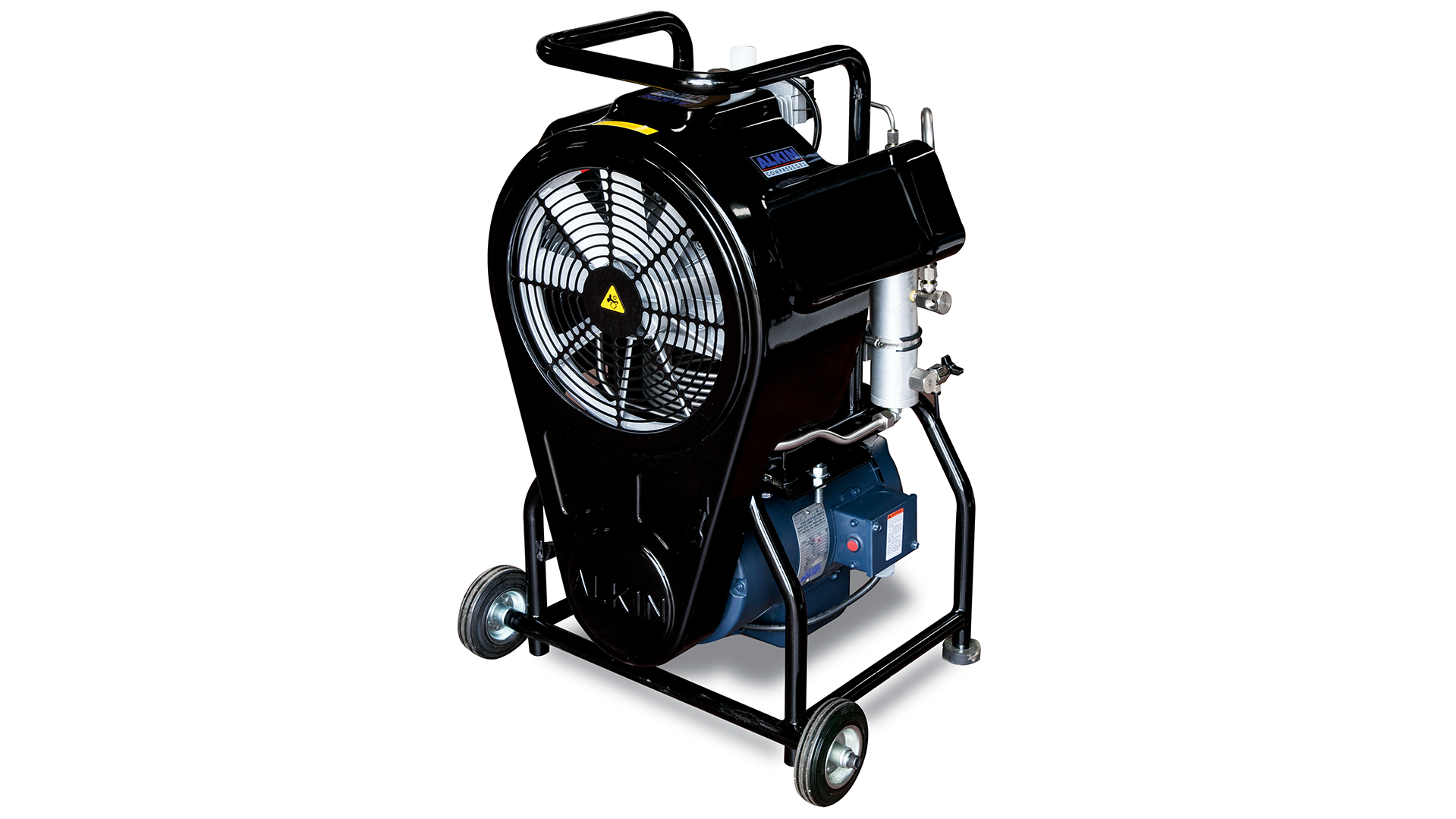

W31 Mariner Vertical
The three-stage, reciprocating, splash lubrication system, and portable design of the W31 series compressors provide exceptional performance to our clients. Compressed air capacity ranges from 110 to 145 liters per minute at a maximum working pressure of 350 bar.
They are ideal for use in operations requiring breathing air in accordance with EN 12021 standard and high pressure air
Technicial Specifications
| Model | Working Pressure | Free Air Delivery (FAD) * | Motor Power | Speed | Number Of Stage | Weight | Dimensions (cm) | ||||||
| bar | psi | l/min | m3/h | cfm | kw | hp | prm | kg | W | L | H | ||
| W31 Mariner Vertical | 225/310 | 3260/4500 | 110 | 6,6 | 3,8 | 2,2 | 3 | 1050 | 3 | 67 | 59 | 50 | 87 |
| 225/310 | 3260/4500 | 145 | 8,7 | 5,1 | 3 | 4 | 1350 | 3 | 67 | 59 | 50 | 87 | |
* Based on recharging a 10 lt cylinder from 0 to 200 barg under standard inlet conditions.
– Higher pressure models up to 350 bar are available.
– Dimensions and weights are approximate and are subject to change.
– ALKIN COMPRESSORS reserves the right to change the information and pictures in its brochures without prior notice.
Standard Features
- P21 Purifier and Refillable Cartridge
- Oil / Water Separators After 2nd and 3rd Stg
- Interstage Cooling Pipes (Stainless steel)
- Aftercooler (Stainless)
- Priority (Min. Pressure) Valve
- Non Return (Check) Valve
- Oil Level Glass
- Electrostatic Painted Portable Chassis
- Safety Valve After Each Stage
- Shock Mounts
- Manuel Start / Stop
- Manuel Condensate Drain
- Thermal Overload Protection for Electric Motor
- Control Panel: On Off Buttons, Hourmeter, Emergency Stop Button
- Complete Filling Hoses (Yoke, Sleeve Valve, Manometer, DIN Adapter)
- Breathing Air Quality Complies with EN 12021:2014
Optional
- Automatic Start / Stop
- Automatic Condensate Drain
- Dual Pressure System 225-310 Bar / 3260-4500 Psi
- Extra Filling Hose
- Stainless Steel Chassis
- Disposable Cartridge
Sectors
- Scuba Diving
- Fire Departments
- Military Applications
- Shipyards
- Civil Defense Applications
- Gas Filling Facilities
- Fish Farms
- Paintball
